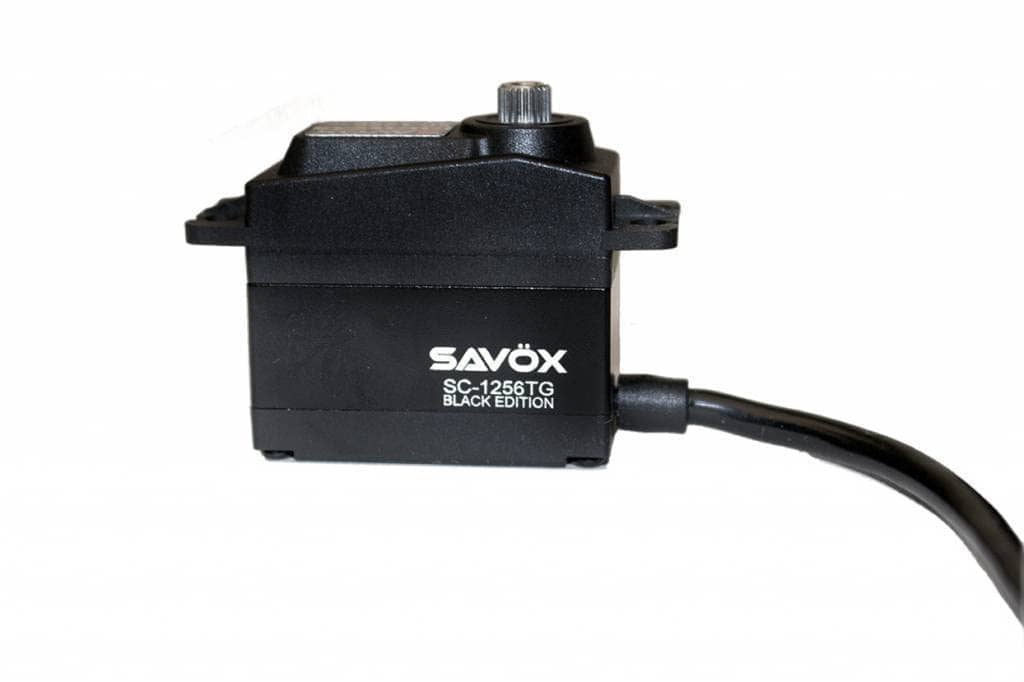

Servo Digital Coreless Savox .15/277 Edición Black Standard

Sleek new unique black design with laser etching and a shorter 200mm black Shielded lead wire. This Servo pushes 277.2 oz of torque and this Servo is perfect for those who are running a 4×4 short course truck and don’t want to blow their whole wad on their Servo. The sc-1256tg sports titanium and metal gears to keep things strong and running smooth. Black anodized to better match any color scheme.dimensions(mm): 40.3×20. 2×37. 2 weight(g): 52.4speed(@4.8V sec/60):. 18torque(@4.8V oz-in): 222.2speed(@6.0V sec/60):. 15torque(@6.0V oz-in): 277.7gear: titanium and aluminumbearing: 2bbcase: aluminum25 tooth splinefrequency: 250-333pulse Width frequency: 1520operating temperature range (C) -10-50operating voltage range (V): 4.5-6.0running current (at no load): 100 ma @ 4.8Vrunning current (at no load): 120 ma @ 6.0Vstall current (at locked): 4000 ma @ 4.8Vstall current (at locked): 5000 ma @ 6.0Vidle current (at stopped): 5 ma @ 4.8Vidle current (at stopped): 5 ma @ 6.0Vlimit angle: 200 10 connector wire Gauge: 22 awgconnector wire length: 250 5 mmhorn gear Spline: 25tcontrol system: pulse Width modificationamplifier Type: digital controlleroperating trave: 100 (when 1000 2000 sec)neutral position: 1500 secdead band Width: 3 secrotating direction: counterclockwise (when 1500 2000 sec)pulse Width range: 800 2200 secmaximum travel: approx 130 (when 900 2100 sec)
