Features:
4 pole 4 pole 12 slot high-torque motor design, suitable for 1/10 scale RC car.
High performance High purity copper windings maximizes efficiency.
High Torque Precision engineered for maximum energy conversion. Precision balanced rotor, smoothness for best reliability and maximum RPM.
Superior Material CNC machined 6061 T6 billet aluminum heatsink can.
Excellent Response Speed ESC has enhanced throttle response, excellent acceleration, powerful interruptions and super smooth and accurate throttle linearity.
Motor Specifications:
Size: 540
Watts: 820W
Max voltage: 12V
Max Amps: 66A
KV(RPM/Volt): 4370KV
Max RPM: 50000

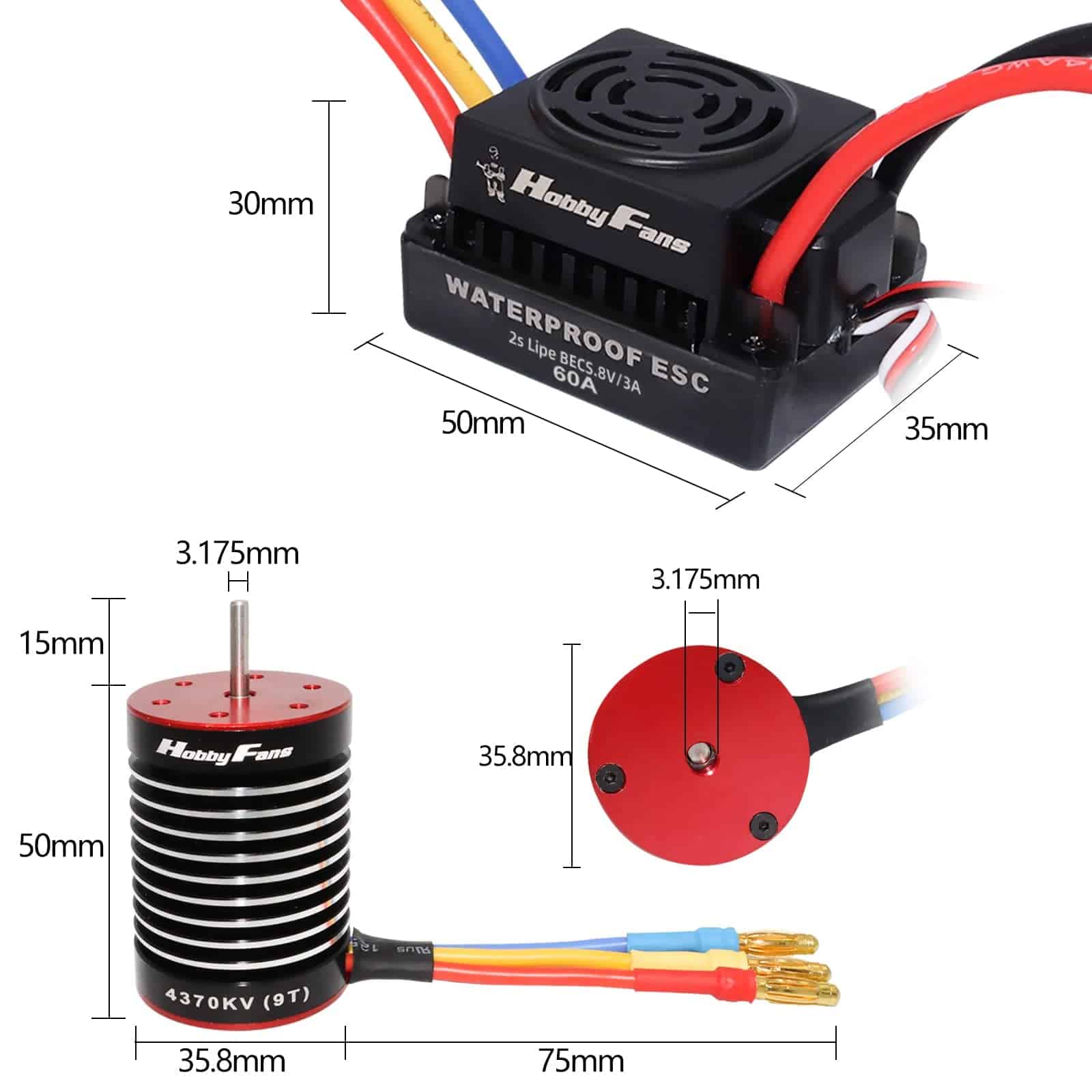

Diameter: 35.8mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug

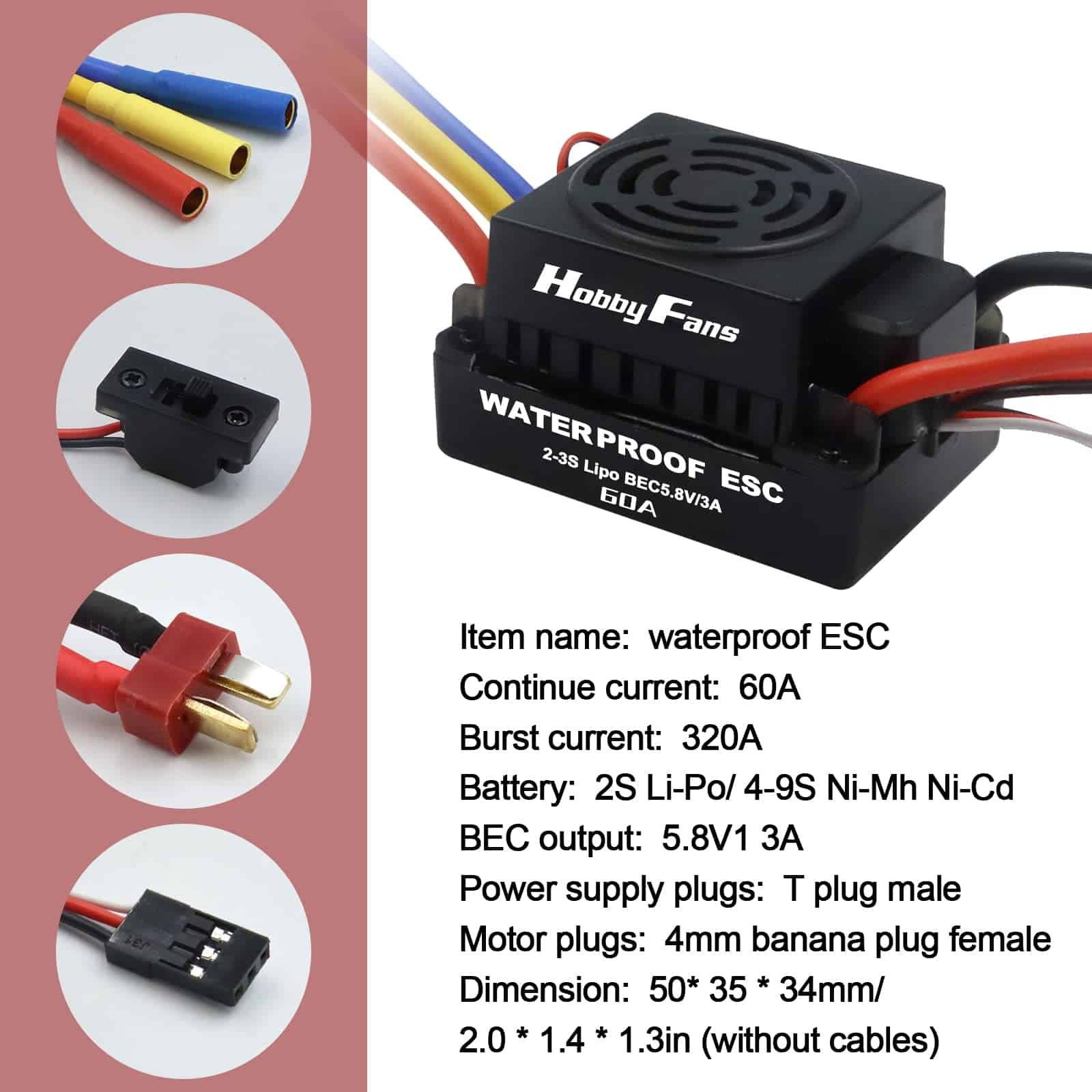

60A ESC Specification:
ESC Size: 42 33 34mm/1.7 1.3 1.3in
ESC Constant Current: 60A
ESC Burst Current: 320A / 10sec
Battery: 2 – 3 Li-Po / 4 – 9 Ni-Mh Batteries (Not Included)
BEC: Yes
BEC Output: 5.8V / 3A
Power Connector of ESC: T Male Plug
Motor Connector of ESC: 4mm Banana Female Plug
Package Including:
1 X 540 4370KV Motor
1 60A ESC
