Kyocera GIVR 16161AW, portaherramienta ranurado interno

Descripción

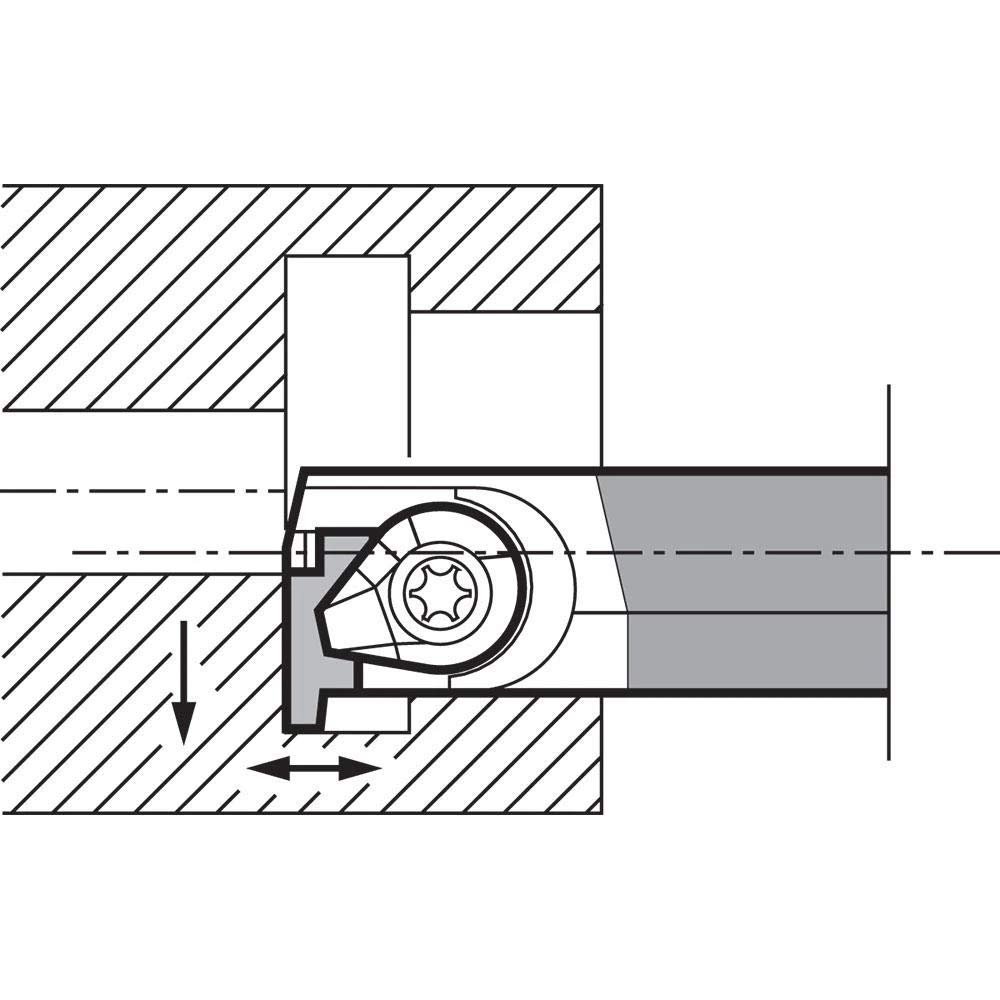

Portaherramientas mano derecha para ranurado interno en diámetros pequeños. Diseño de sujeción del inserto por clamp superior (top clamp). Compatible con insertos para mano derecha GVR...A y GVR...AR.

Detalles del producto:

Grooving Type: Internal

Hand of Holder: Right-Hand

Series: GIV

Toolholder Style: GIV

Lead Angle (Degree): Insert Reliant

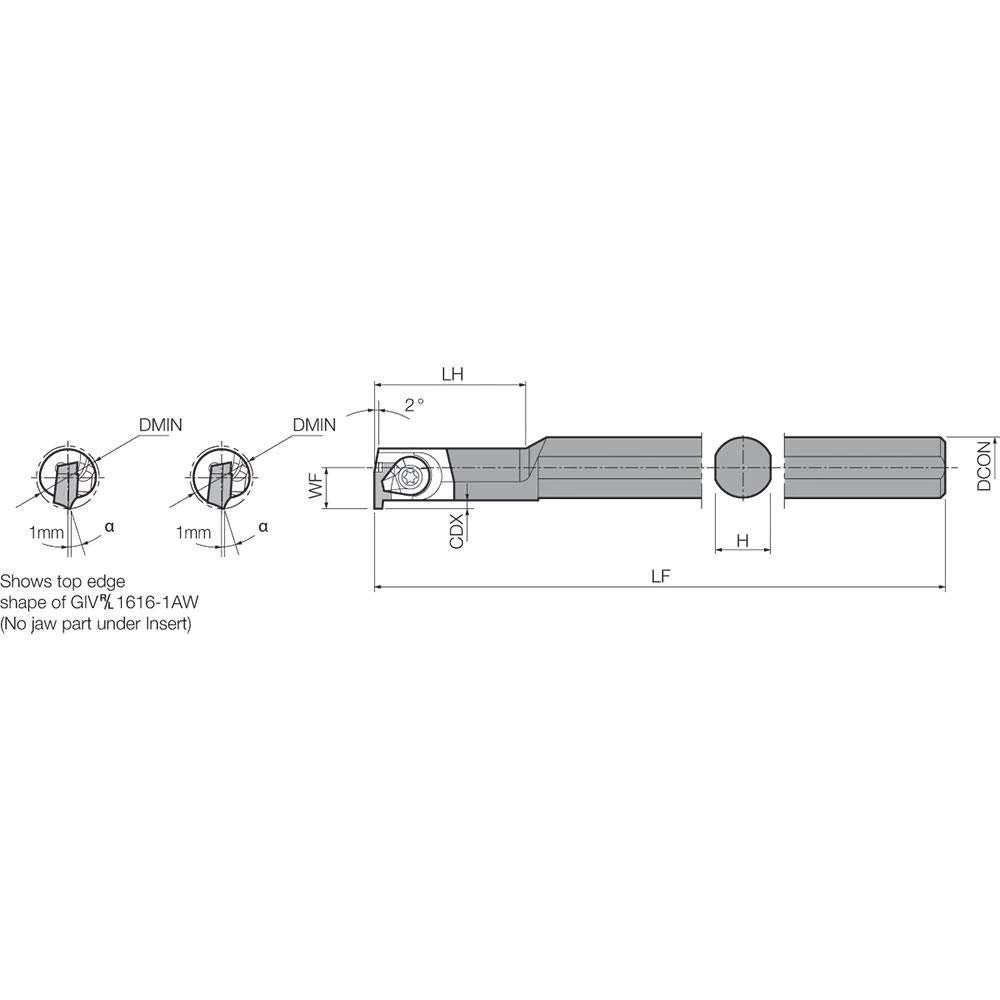

[DMIN] Minimum Bore Diameter (Decimal Inch): 0.6299

[DMIN] Minimum Bore Diameter (mm): 16.00

[DCON] Shank Diameter (Decimal Inch): 0.6299

[DCON] Shank Diameter (mm): 16.00

[H] Shank Height (Decimal Inch): 0.5906

[H] Shank Height (mm): 15.00

[LF] Functional Length (Decimal Inch): 6.8898

[LF] Functional Length (mm): 175.00

[LH] Head Length (Decimal Inch): 1.8898

[LH] Head Length (mm): 48.00

[WF] Cutting Edge Distance (Decimal Inch): 0.4173

[WF] Cutting Edge Distance (mm): 10.60

[CDX] Max Depth of Cut (Decimal Inch): 0.0906

[CDX] Max Depth of Cut (mm): 2.30

[CW] Insert Cutting Width (Decimal Inch): 0.0394

[CW] Insert Cutting Width (mm): 1.00

Coolant Through: No

Insert Holding Method: Top Clamp

Multi-Use Tool: No

Application: Small Diameter Grooving

Toolholder Material: Carbide

Unit of Measure: Metric

Compatible Insert Hand: Right-Hand

Compatible Inserts (Partial): GVR...A, GVR...AR

1. Portaherramientas mano derecha

2. Aplicación: ranurado interno en diámetros pequeños

3. Diseño de sujeción del inserto: clamp superior (top clamp)

4. Compatible con insertos GVR...A y GVR...AR (mano derecha)
